BML-500
1 / 4
  • BML-500
  • BML-500
  • BML-500
  • BML-500
BML-500
Boxway Turning Center
Description:
  • Slant bed design
  • High quality cast iron
  • Box ways on X, Y, Z axes
  • Twin spindles // single turret
BML-500 Capacity
BML-500
Swing over bed Ø500 mm
Swing over saddle Ø390 mm
Distance between centers 633 mm
Max. machining dia. Ø360 mm
Max. machining length 300 mm
Slant angle of bed 30°
BML-500 Travels
BML-500
X-axis 195(180+15) mm
Z-axis 330 mm
BML-500 Spindle
BML-500
Spindle speeds STD. 50-6000(A2-5) rpm
Spindle nose A2-5
Spindle bore dia Ø56 mm.
Front bearing inner dia. Ø80 mm.
Draw bar dia. Ø45 mm.
BML-500 Chuck
BML-500
Chuck Diameter 6"
BML-500 Turret
BML-500
Type STD. Hydraulic; OPT. Servo
Station STD. 10 pcs., OPT. 8 pcs.
Model STD. LS-160, OPT. YL-200A
Square tool shank STD. 20x20 mm, OPT. 25x25 mm..
Boring bar shank diameter STD. Ø32 mm., OPT. Ø40 mm.
Indexing time (0-180°) 2.0 sec.

BML-500 Capacity, Travels, Spindle, Chuck, Turret

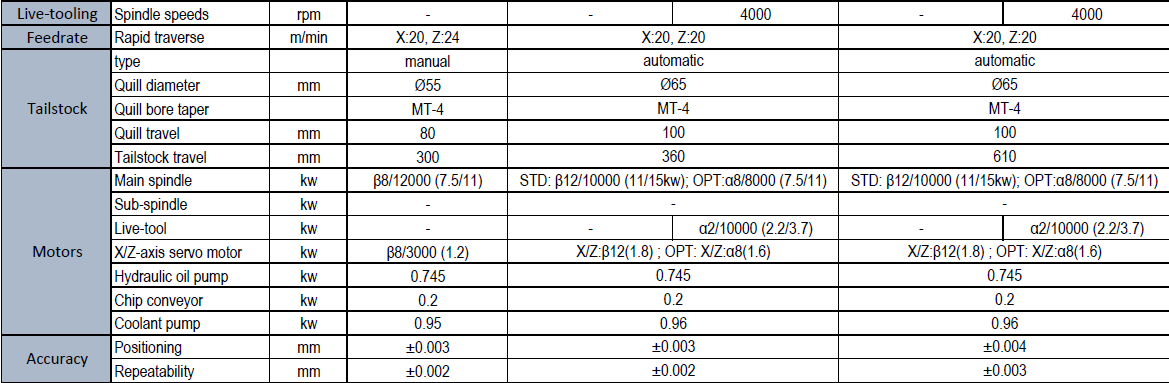

BML-500 Live-tooling, Feedrate, Tailstock, Motors, Accuracy
BML-500 Power, Machine Size
