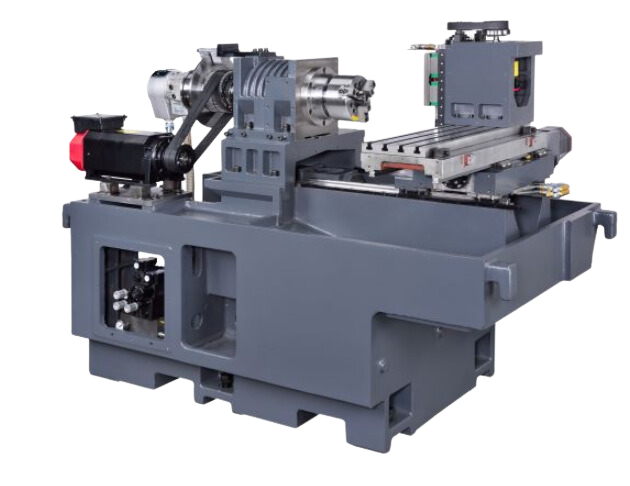

ML-430(Y)
Gang Type Turning Center
Description：
- Flat bed design, compact floor space, and multi-tasking production
- X/Y/Z axis linear guid way with high feed rate and low abrasion
- Varied turret and gang tooling selection- gang tooling system and turret
- Enhancement of varied parts with Y-axis tooling systemn design
Scroll Right for More| ITEM | ML-430 | ML-430Y |
| Swing Over bed | Ø430 | Ø430 |
| Swing Over Saddle | Ø160 | Ø160 |
| Max. Machining Dia. | Ø430 | Ø430 |
| Max. Machining Length | 240 mm | Gang Tool: 240 mm Axial live tooling: 110 mm Radial live tooling: 130 mm |
| Draw Bar Diameter | Ø45 | Ø45 |
| X-axis | 350 mm | 350 mm |
| Z-axis | 320 mm | 320 mm |
| C-axis (Optional) | 360˚ (0.001˚) | 360˚ (0.001˚) |
| Tool Capacity | STD:6 pcs OPT:8 pcs |
5 pcs |
| Chuck Diameter | 6” | 6" |
| Spindle Speeds | 6,000 pm | 6,000 rpm |
| Spindle Nose | A2-5 | A2-5 |
Y-Axis Function
- The Y-axis features a lightweight structure and is directly driven by a servo for high positioning accuracy.
- The excellent use of a Y-axis saves money, time, floor space, manpowerand fixture cost.
- Full cycle machining reduces loss of accuracy.
